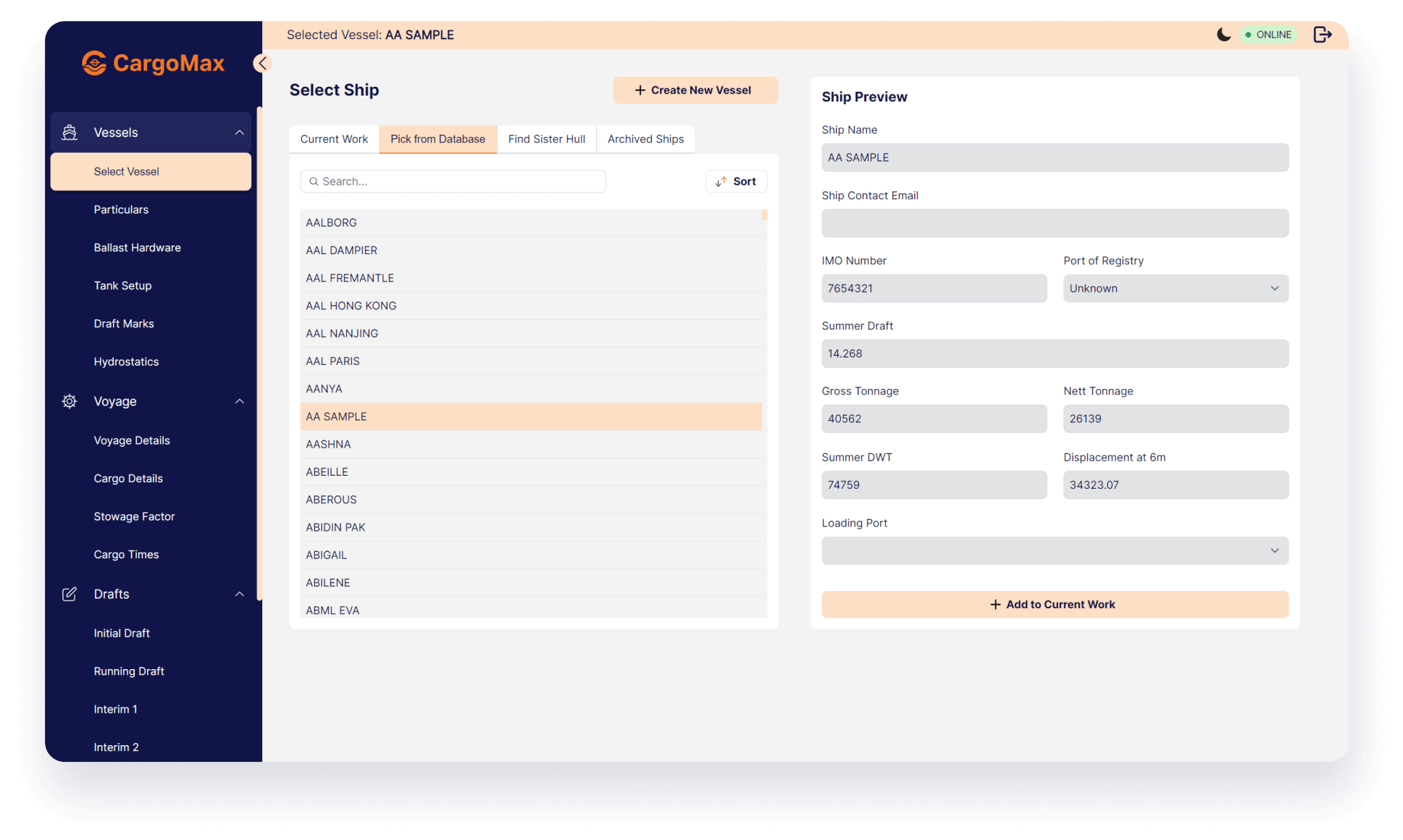

Quick and Easy Vessel Selection
Access a selection of ships, with over 10,000 vessels available. Additionally, you can search for sister hulls based on various criteria, speeding up your workflow. You can also archive ships to easily track and revisit your previous work.

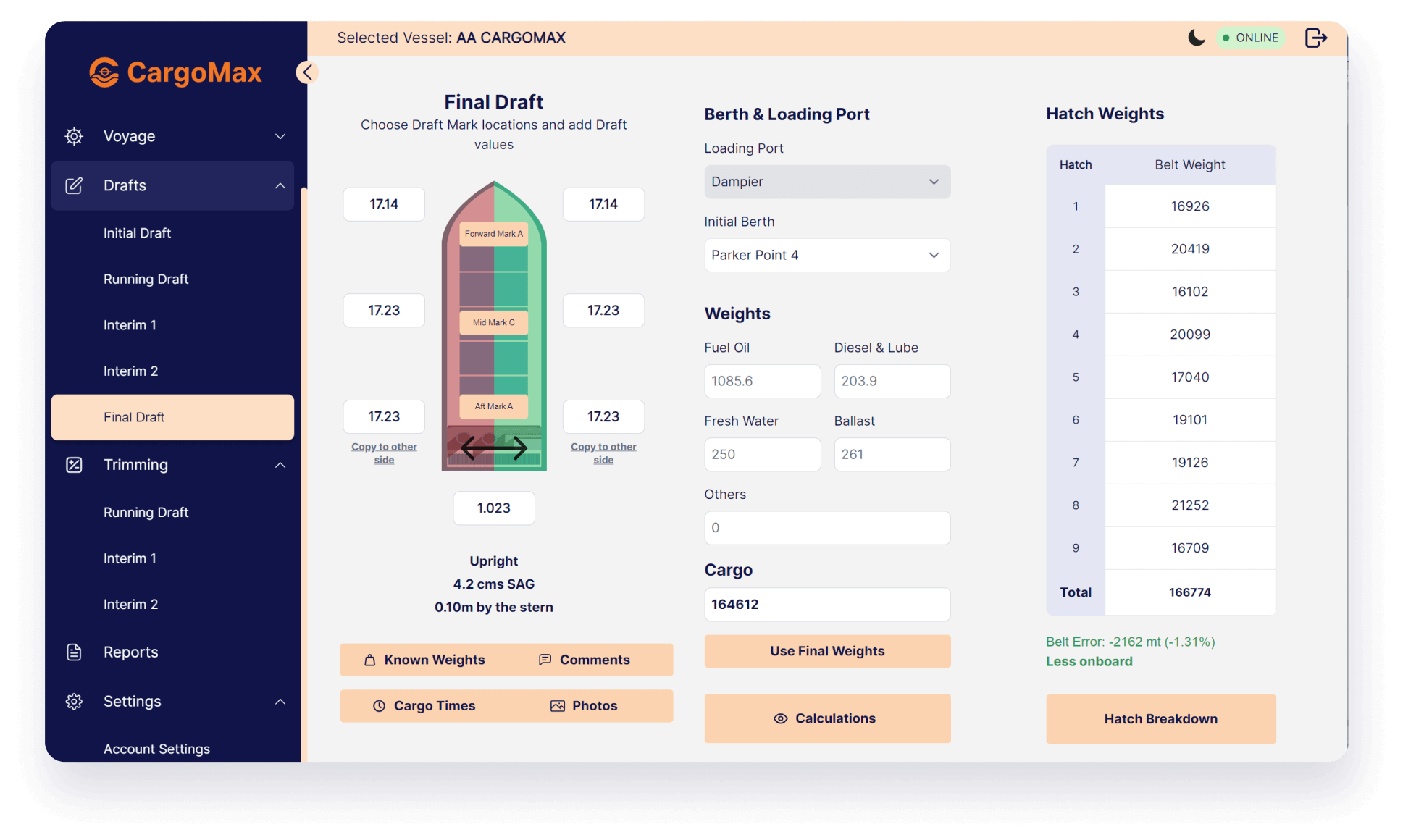

Comprehensive Draft Management
Easily input up to 5 sets of drafts, Initial, Running, Interim 1, Interim 2 and Final, ensuring precise monitoring throughout the cargo operations. Instant feedback is provided after drafts are entered, including corrected drafts, true trim (corrected), list in degrees, deflection (Hog/Sag), displacement, and constant and cargo information. CargoMax also provides accurate calculation of dock water allowance to maximize summer draft loadings.

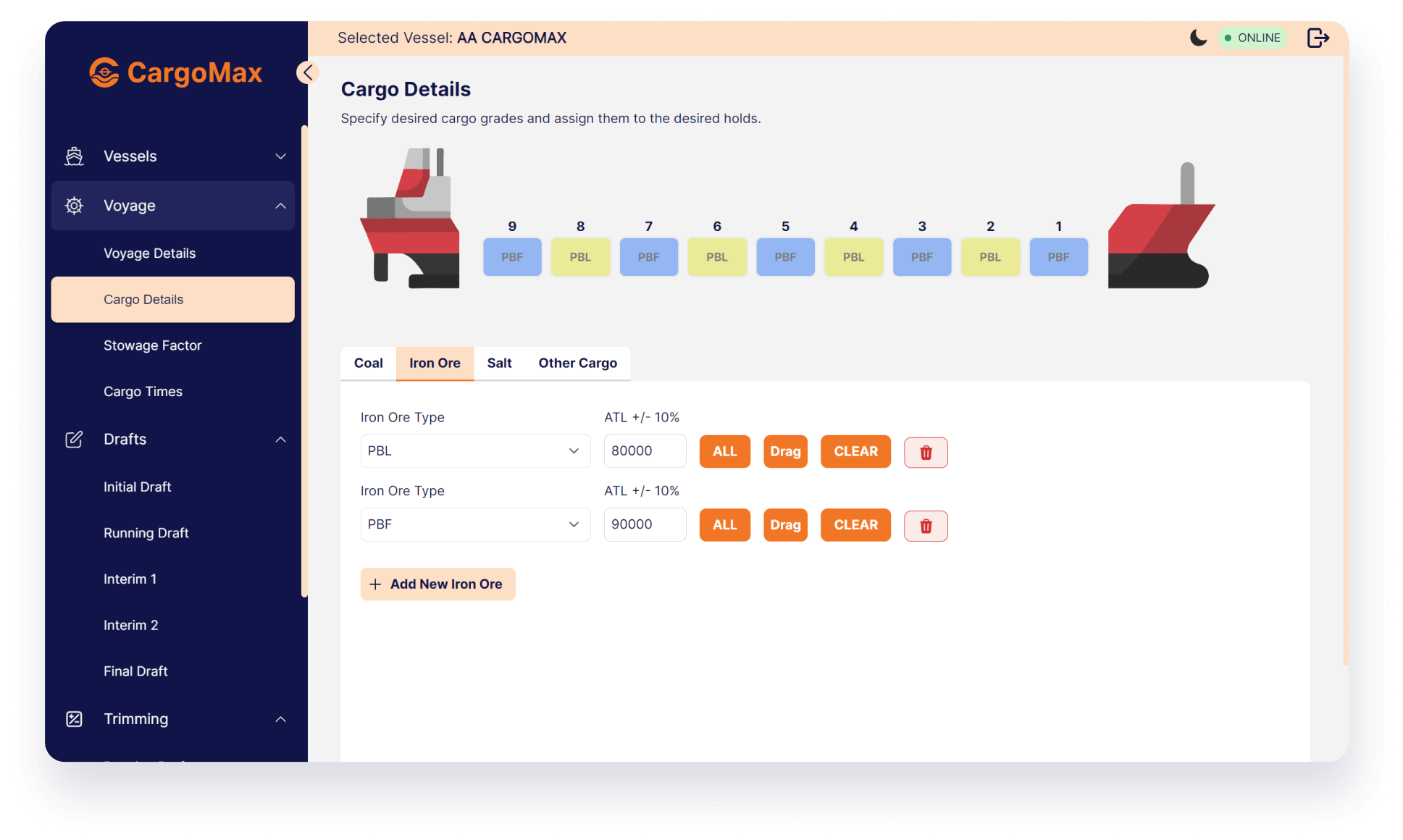

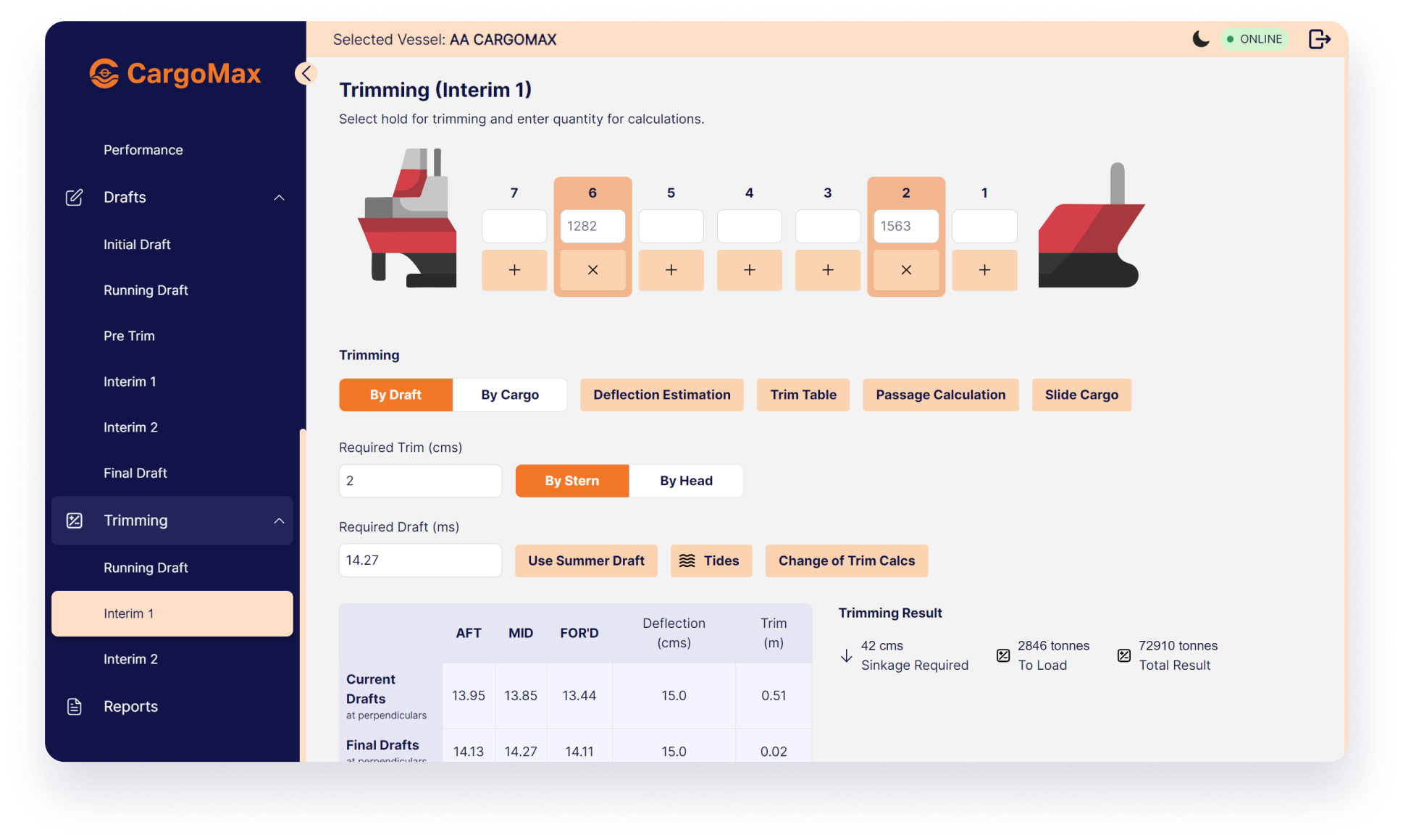

Efficient Cargo Trimming
CargoMax trims cargo based on draft and cargo requirements while monitoring cubic capacity and holding mass limits for optimal loading.

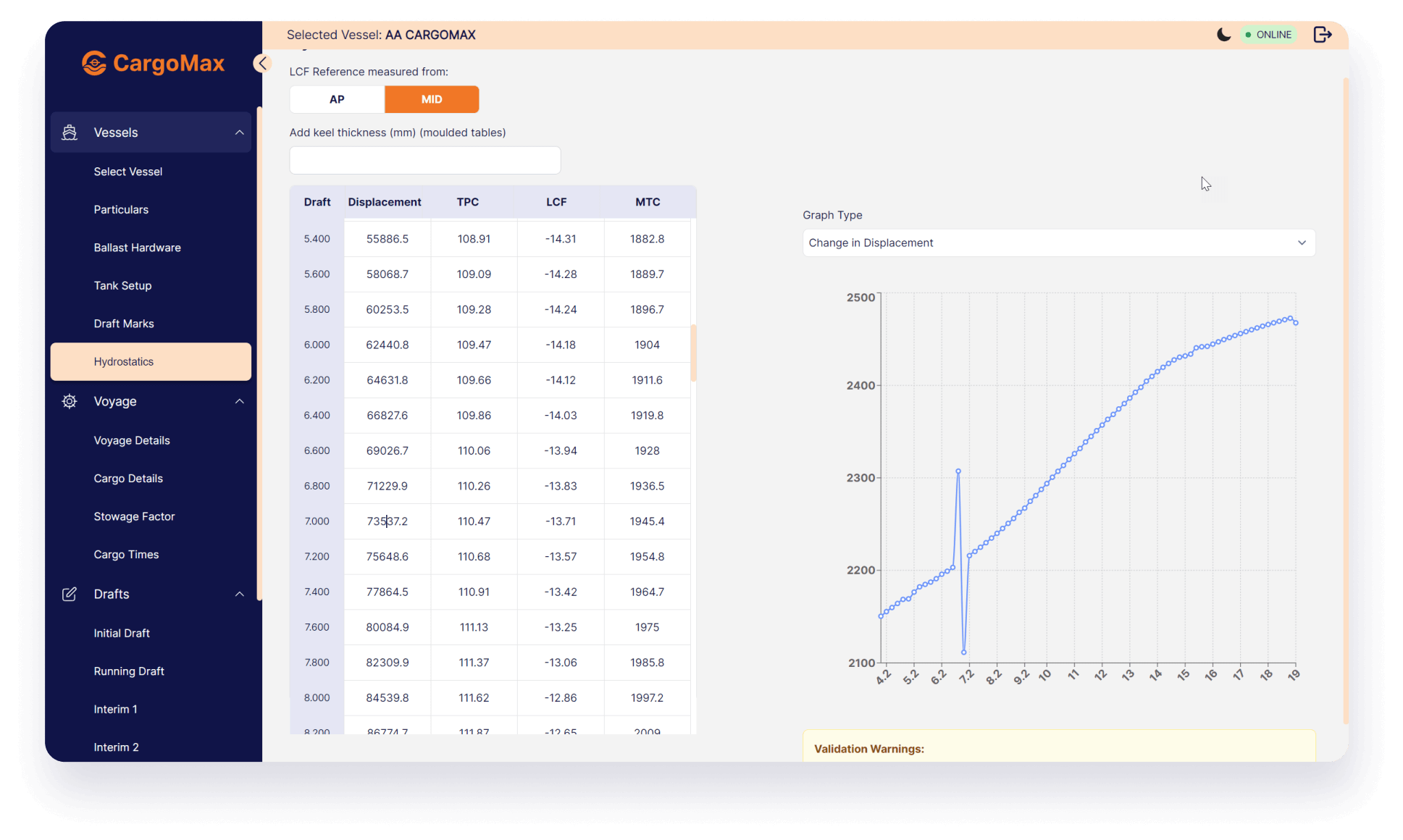

Hydrostatic Data Visualization
Validate hydrostatic data effortlessly with CargoMax's built-in graphing functionality. Utilize hydrostatic graphs to trap data entry mistakes, and easily correct moulded hydrostatic tables by entering the keel plate thickness, further enhancing accuracy and efficiency.

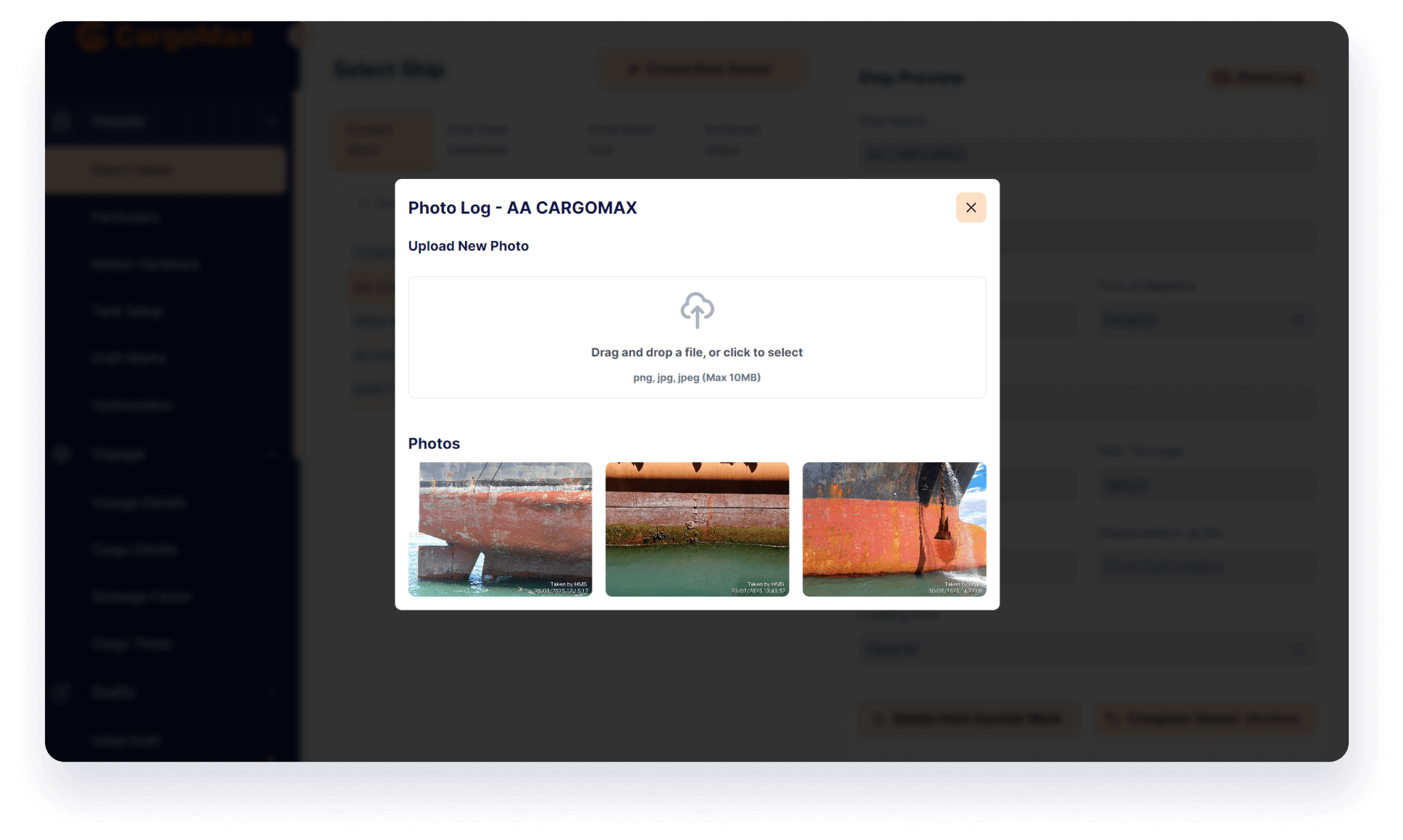

Advanced Commenting & Photo Log
Immerse yourself in CargoMax's sophisticated commenting function, designed to elevate your cargo management experience. Capture and log survey specifics with pinpoint accuracy, creating a comprehensive repository for future reference. Stay on top of your game with integrated timekeeping feature, enabling seamless management and verification of statement of facts. Proactively address potential issues with customizable warning alerts, while conveniently storing photos within the system for easy reference.
Detailed Feature Comparison
Compare all features available in our Explorer, Individual, Fleet, and Business plans to find the perfect fit for your needs.
Scroll horizontally to compare all plans.
| Feature | Explorer | Individual | Fleet | Business |
|---|---|---|---|---|
| General access and licensing | ||||
| Users per license | 1 | 1 | 1 | 1 |
| Devices per license | 2 (Windows + Android/iOS) | 2 (Windows + Android/iOS) | 2 (Windows + Android/iOS) | 2 (Windows + Android/iOS) |
| Project sync across devices | Included | Included | Included | Included |
| Simultaneous logins | 1 | 1 | 1 (per seat) | 1 (per seat) |
| Ability to work offline | up to 30 consecutive days | up to 30 consecutive days | up to 30 consecutive days | up to 30 consecutive days |
| Vessel database and configuration | ||||
| Number of vessels in database | 10 | 10,000+ | 10,000+ | 10,000+ |
| Regular database updates | Not included | Included | Included | Included |
| Add your own vessel | Not included | Included | Included | Included |
| Vessel selection panel | Included | Included | Included | Included |
| Sister hull lookup | Not included | Included | Included | Included |
| Vessel data (particulars, hatch data, ballast setup, tank configuration, hydrostatics) | limited | Included | Included | Included |
| Visual graphing of hydrostatics and their differentials | Included | Included | Included | Included |
| Reference point selection (Aft or Midship) | Included | Included | Included | Included |
| User input | ||||
| Draft marks (Aft, Midship, Forward) | Included | Included | Included | Included |
| Voyage data (destination, agents, loading criteria) | Included | Included | Included | Included |
| Cargo details | Included | Included | Included | Included |
| Stowage factor | Included | Included | Included | Included |
| Cargo times (survey, load start/complete, etc.) | Included | Included | Included | Included |
| Calculations | ||||
| Comprehensive draft management (initial, running, interim 1 & 2, final drafts) | Included | Included | Included | Included |
| Trimming (running, interim 1 & 2) by cargo mass or draft | Included | Included | Included | Included |
| Automatic draft corrections | Included | Included | Included | Included |
| Port tides input for MSD | Not included | Not included | Not included | Included |
| Reports & Export | ||||
| Draft survey report generation | Included | Included | Included | Included |
| Agents report generation | Not included | Not included | Not included | Included |
| Hold clean report generation | Not included | Not included | Not included | Included |
| Export reports as PDF | Included | Included | Included | Included |
| Export reports via mail | Not included | Not included | Included (optional) | Included |
| Data export via CSV | Not included | Not included | Included (optional) | Included |
| Commenting and photo uploading | Included | Included | Included | Included |
| Standardized team reporting | Not included | Not included | Included | Included |
| Custom reporting | Not included | Not included | Included (optional) | Included |
| Collaboration & fleet management | ||||
| Collaboration capability | Not included | Not included | Included (optional) | Included |
| Device management | Not included | Not included | Included (optional) | Included |
| Onboarding and support | Not included | Not included | Included | Included |
| Data Persistence & History | ||||
| Archive work | Included | Included | Included | Included |
| Support and resources | ||||
| Access to online tutorials | Included | Included | Included | Included |
| Email support | Included | Included | Included | Included |
